A-1 Skyraider Cockpit Layouts
Unless otherwise indicated, all photos Copyright © 2009
TacAir Publications,
all rights reserved.

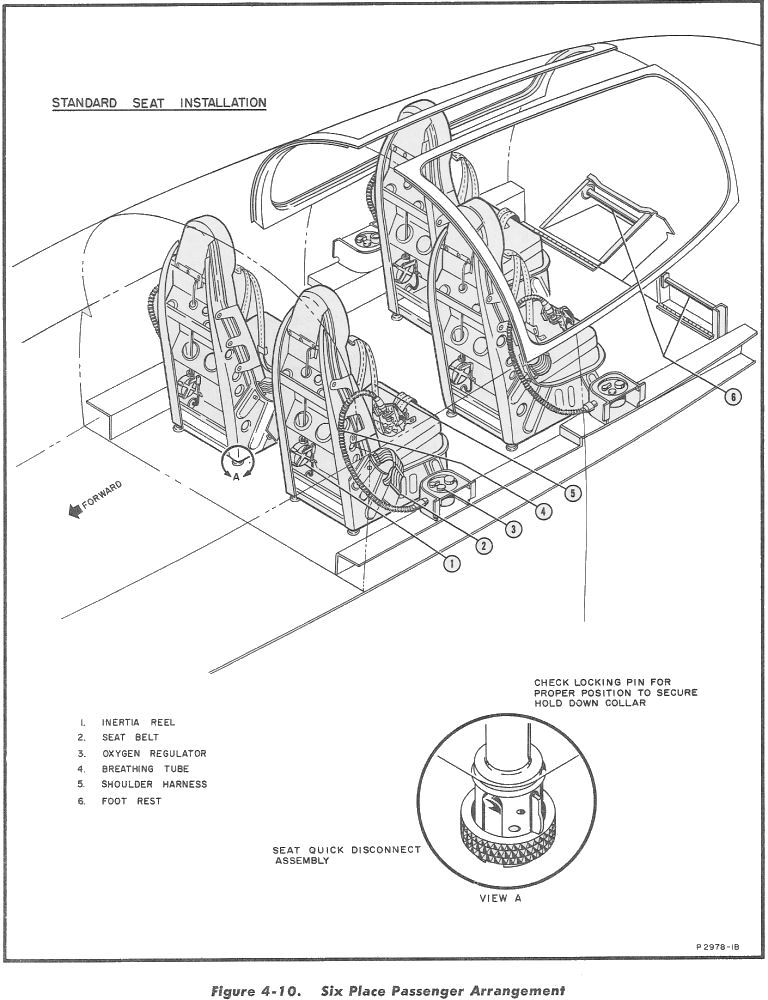

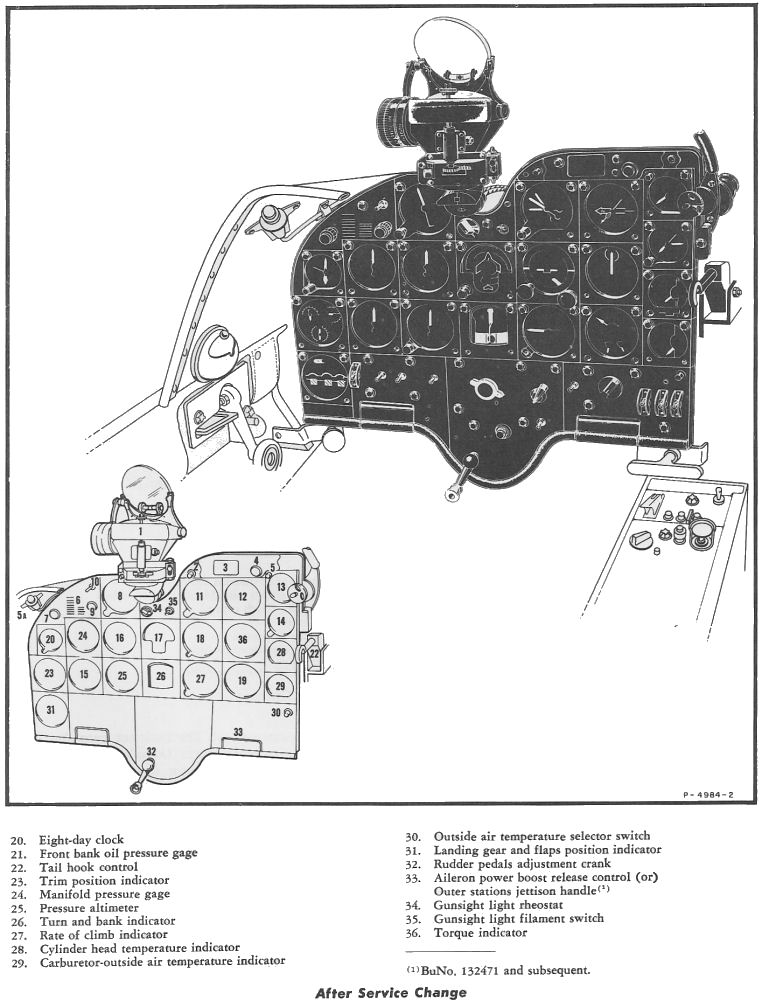

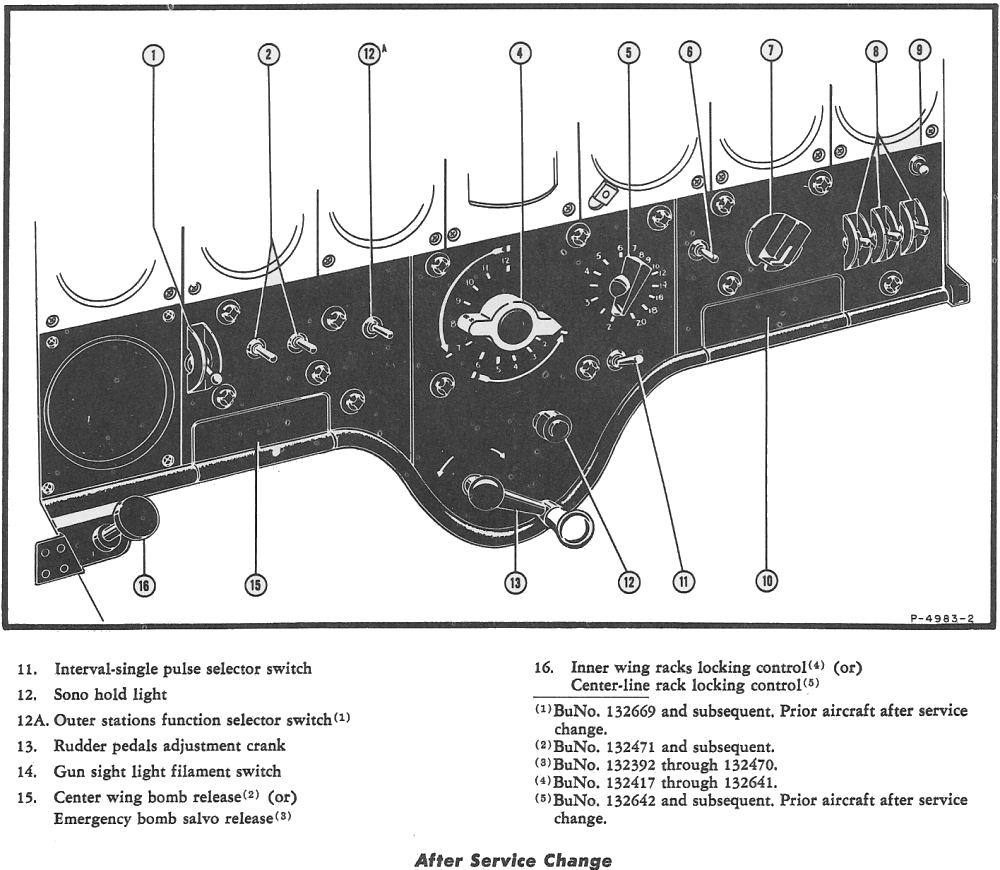

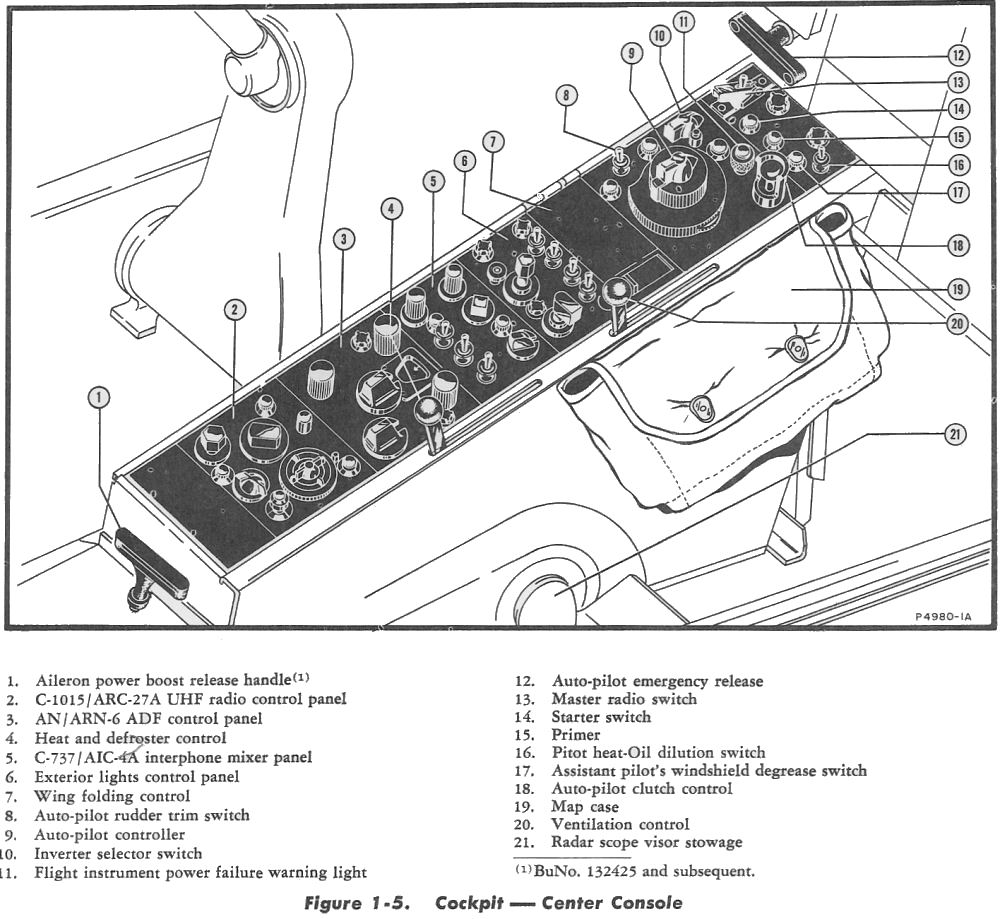

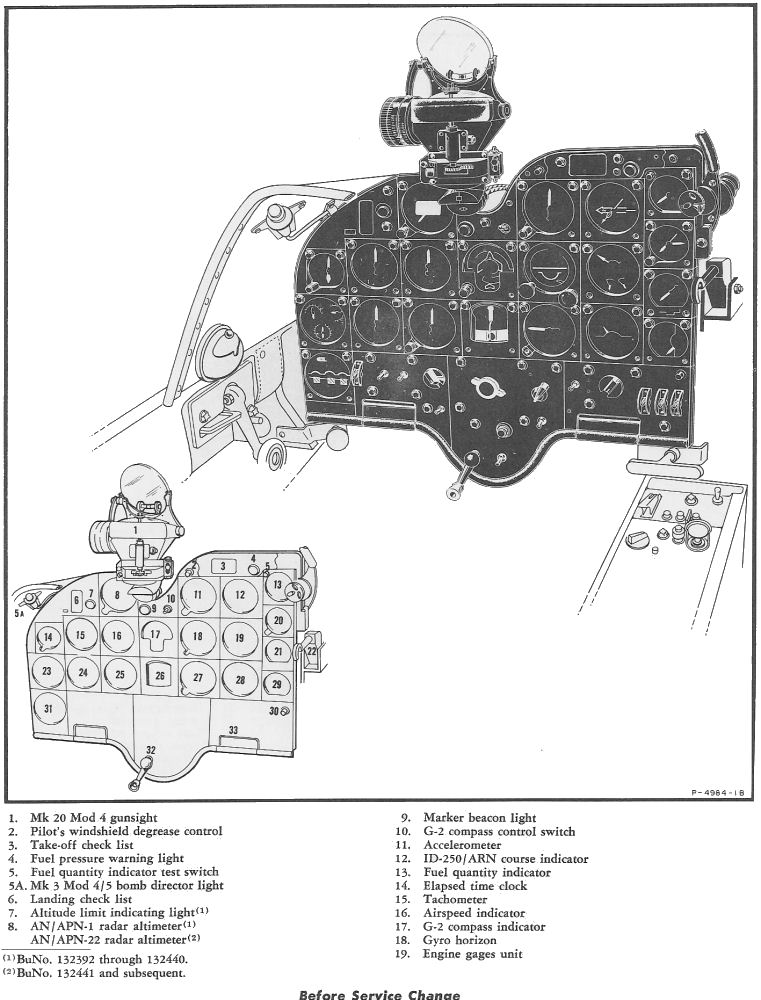

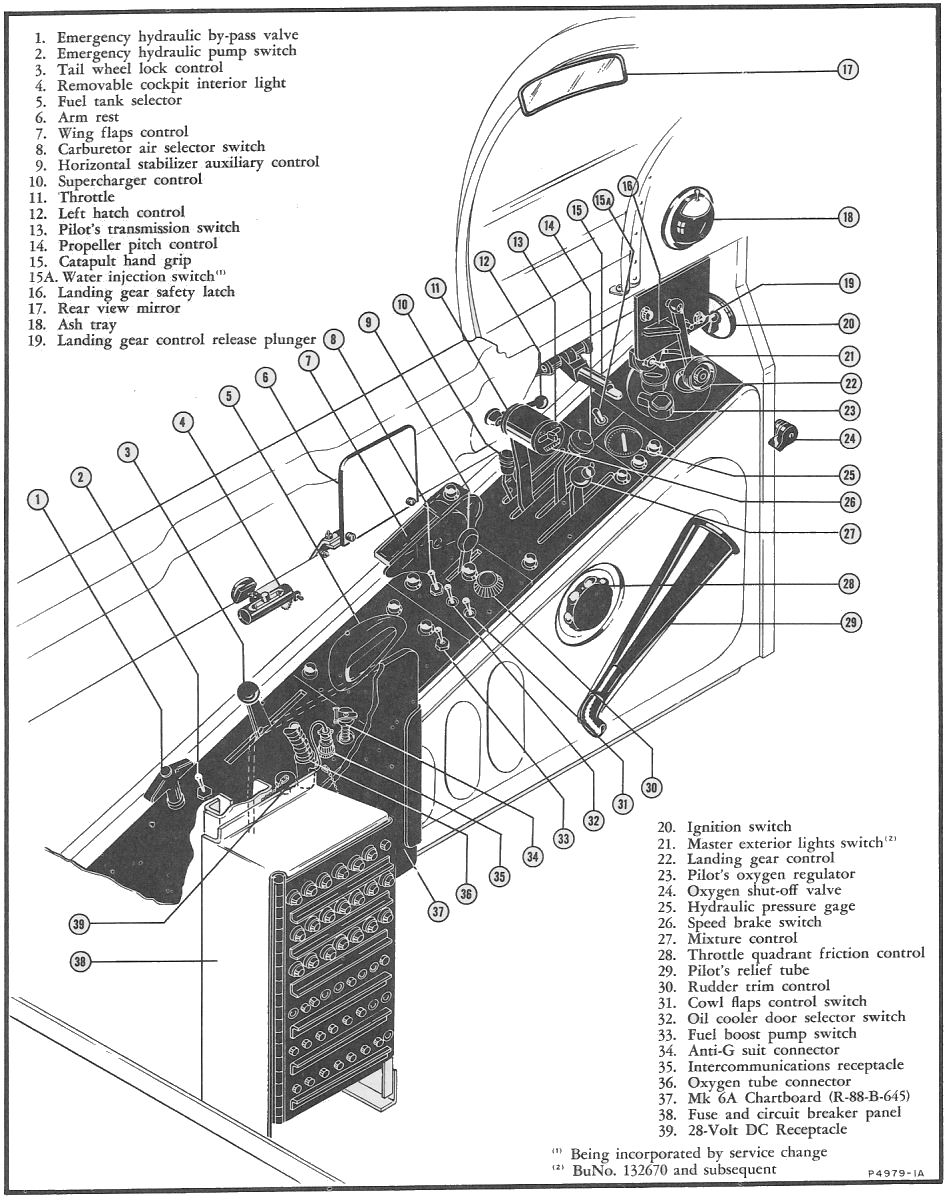

| A-1E Cockpit Layout |
 |
 |
 |
 |
 |
 |
 |
 |

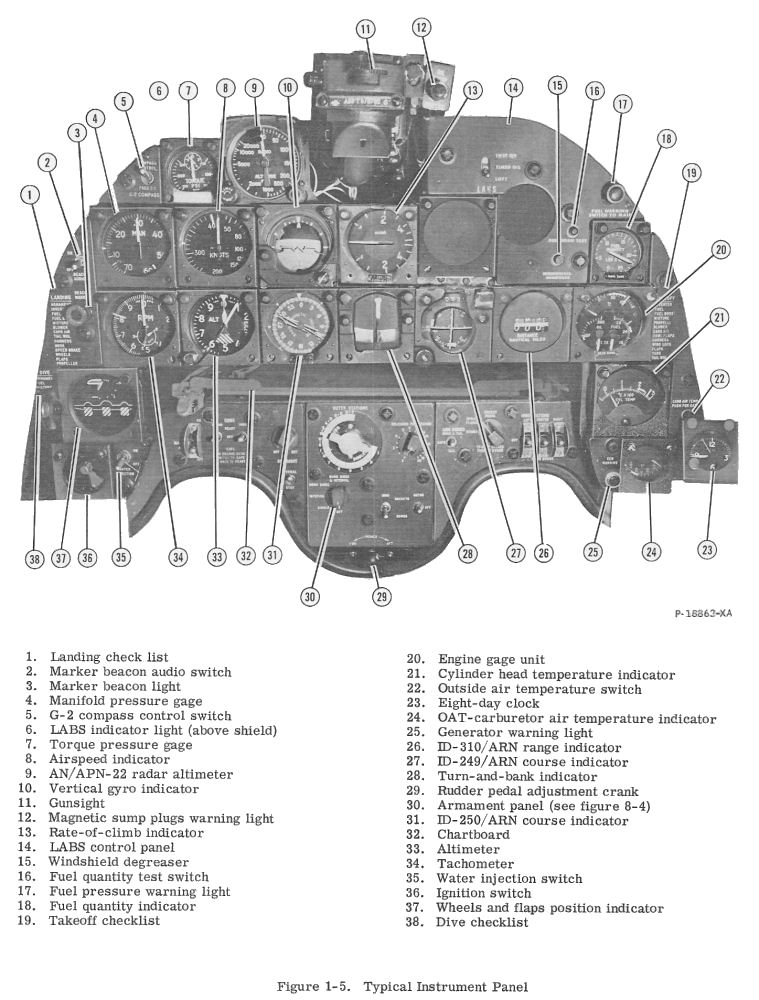

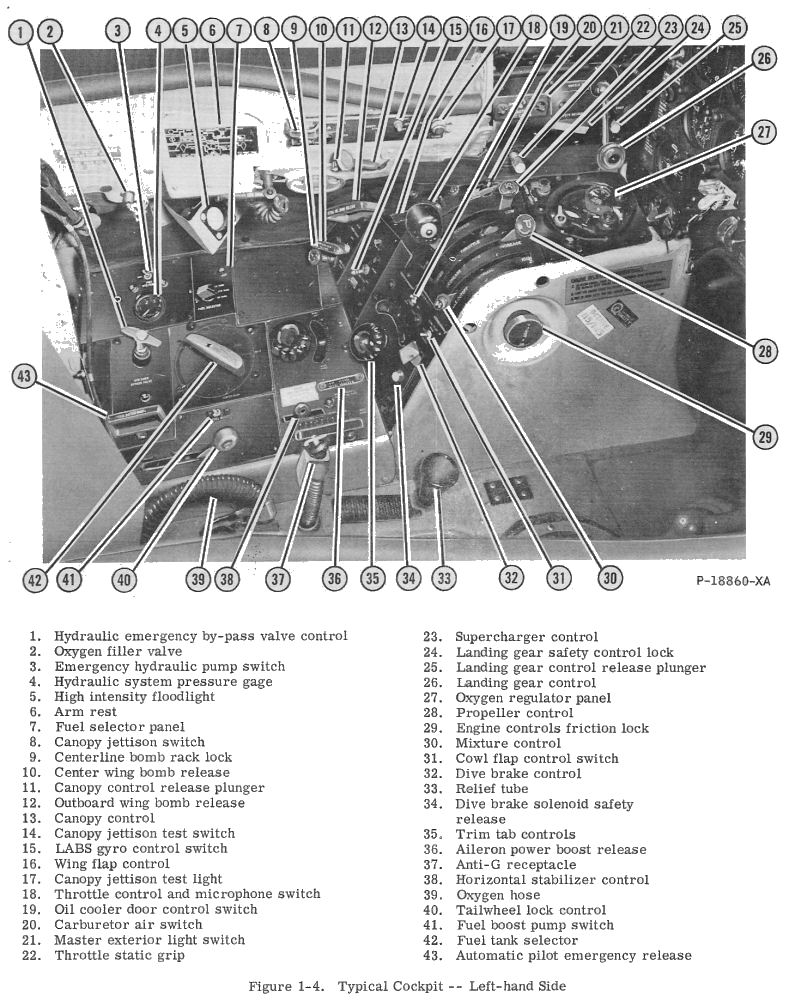

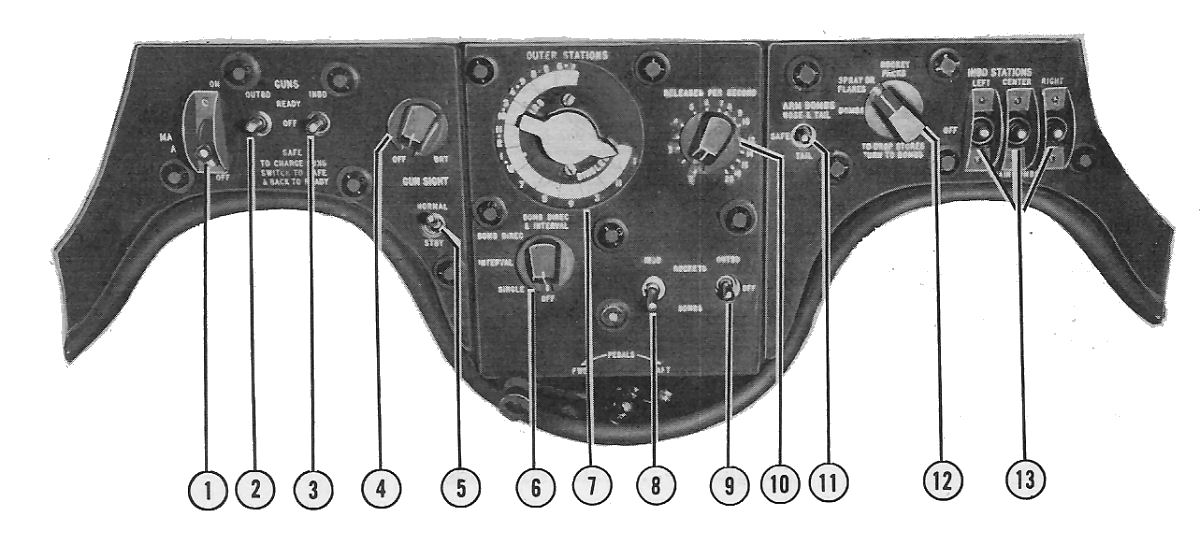

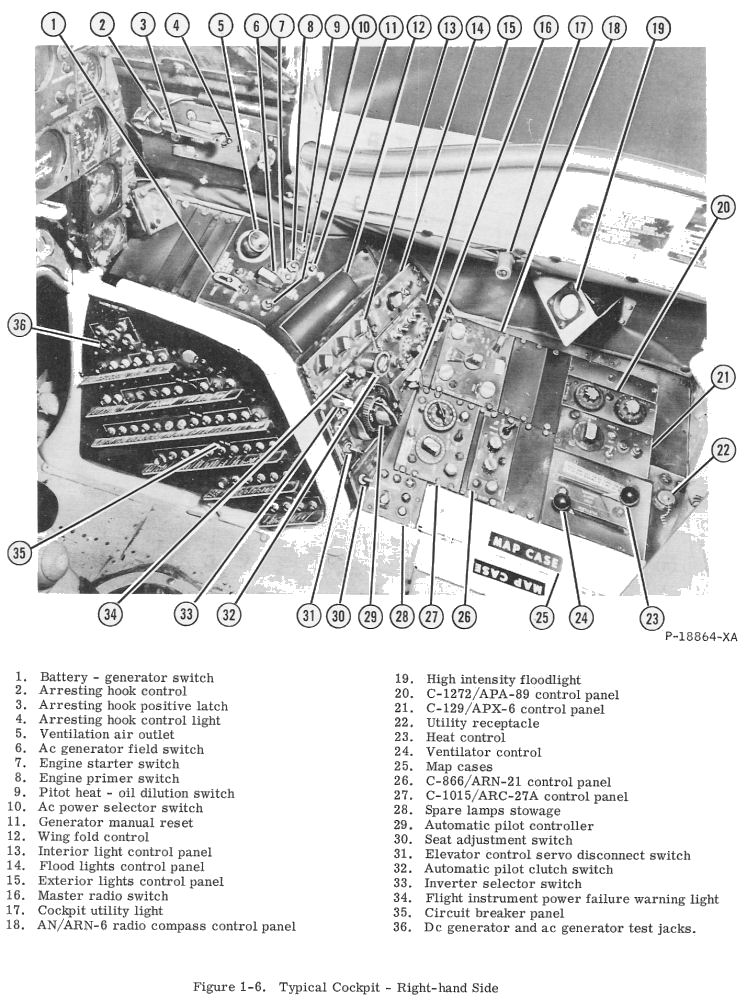

| A-1H Cockpit Layout |
 |
 |
 |
 |
