F-105 Thunderchief Cockpit Layouts

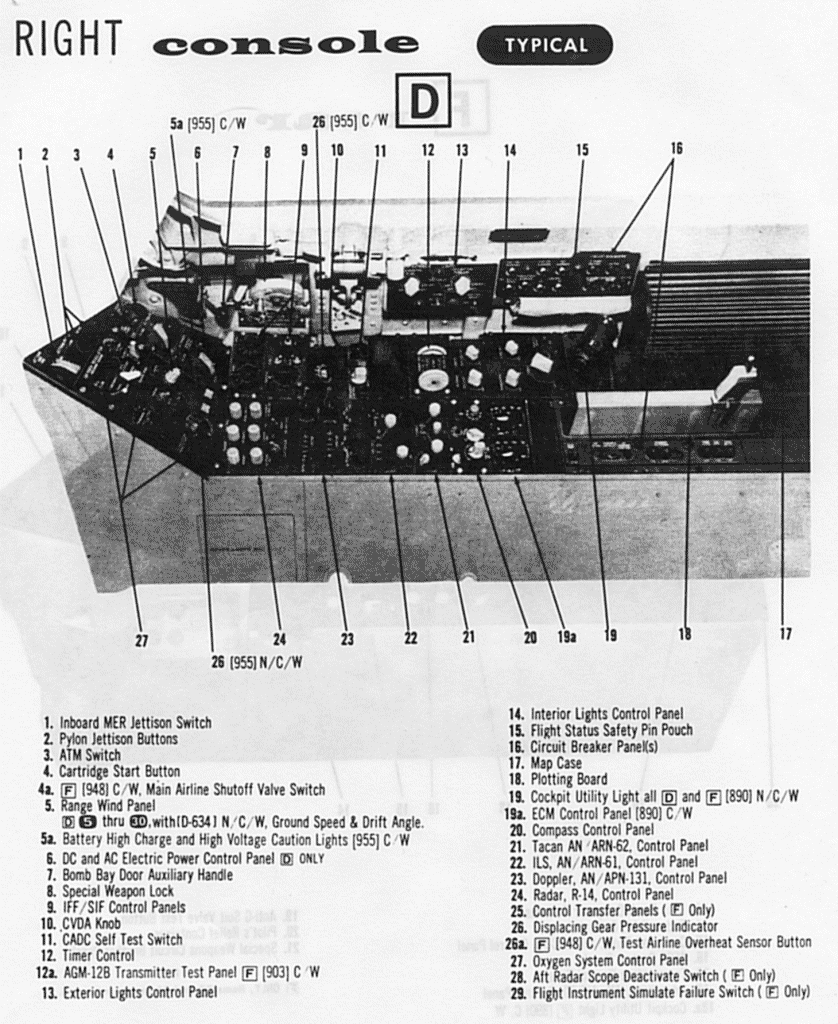

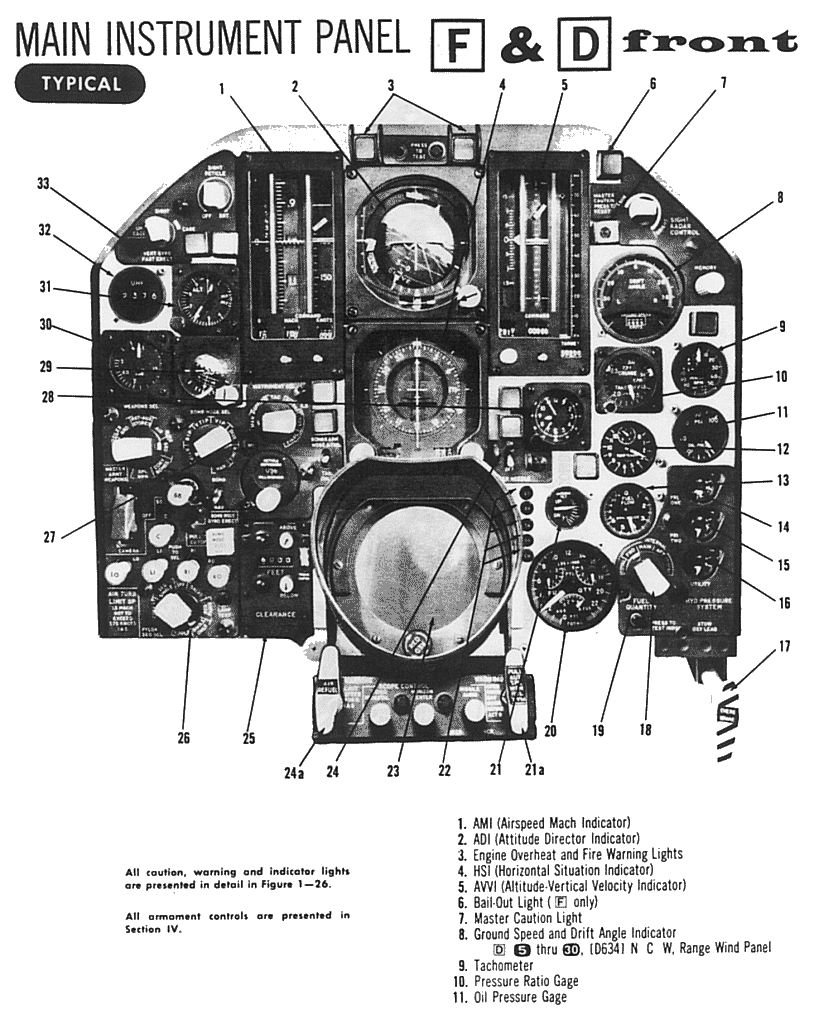

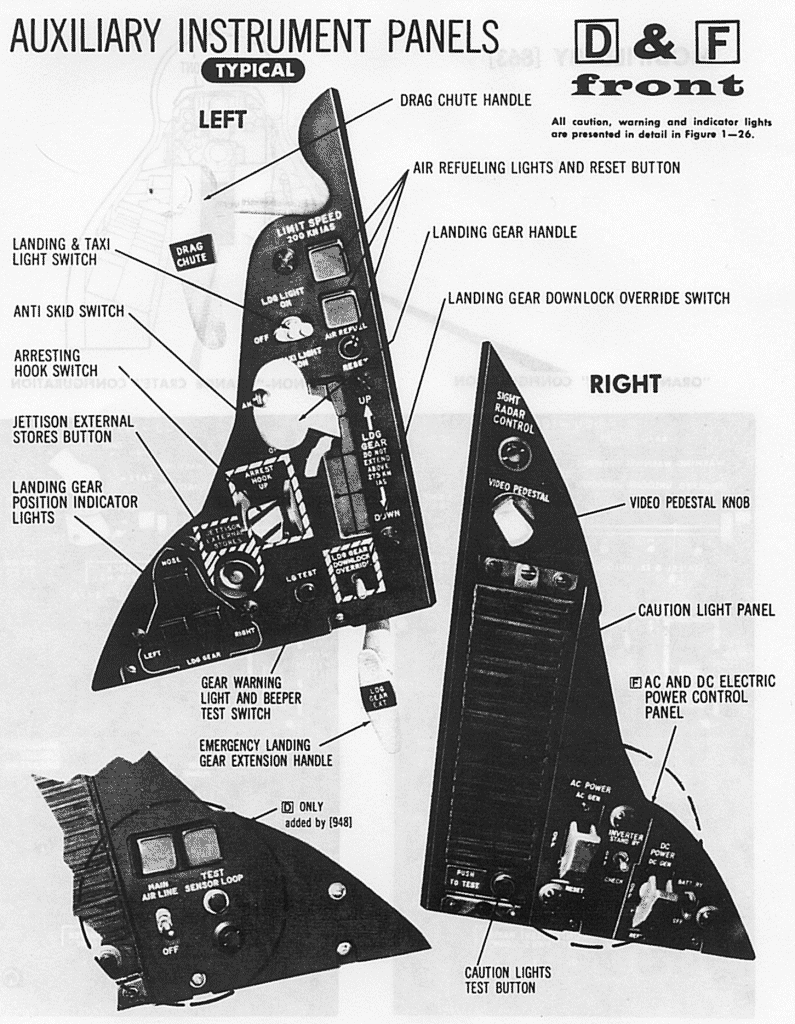

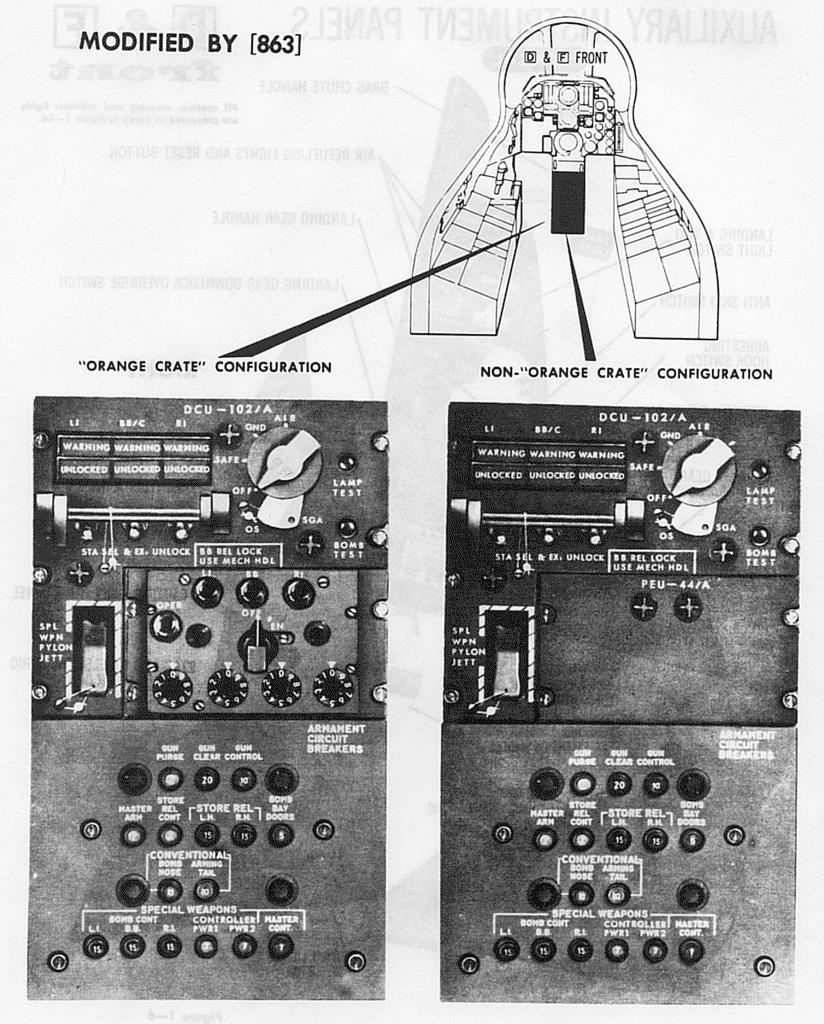

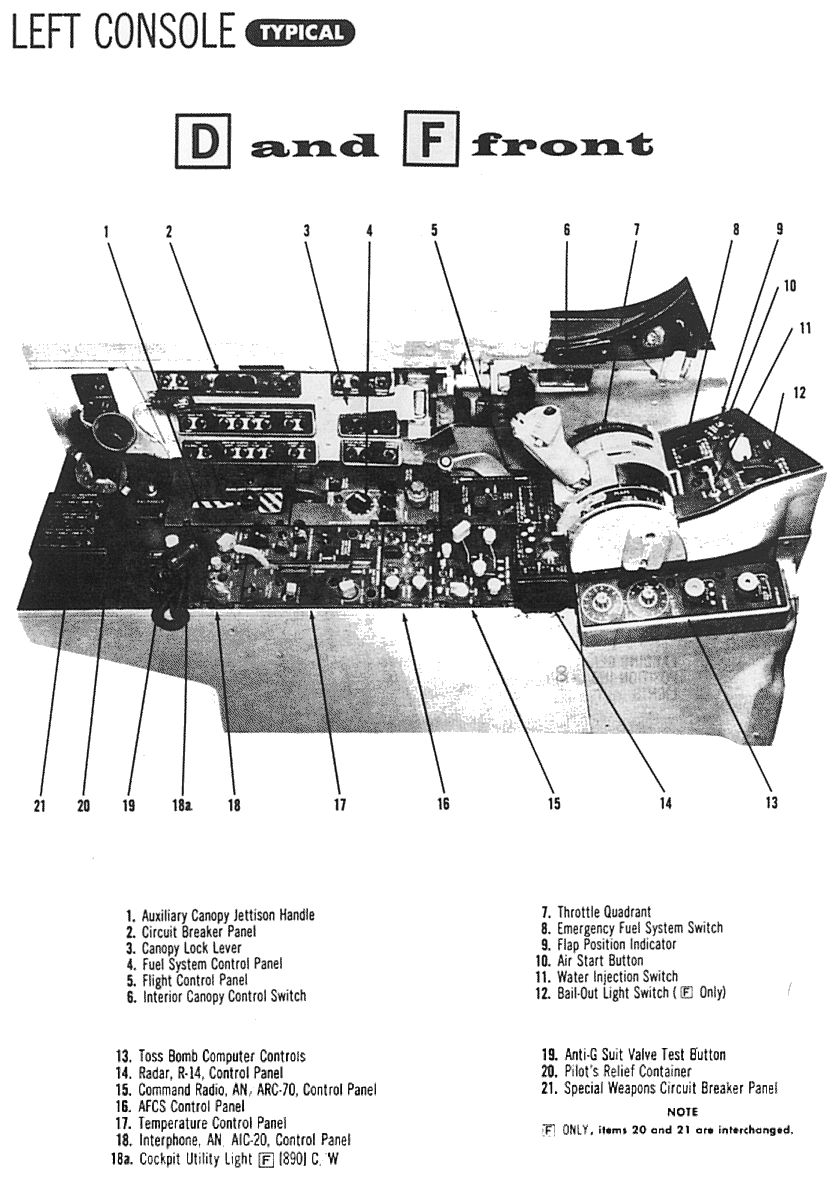

F-105D Cockpit Layout
F-105 F-105 F-105 F-105
F-105 F-105

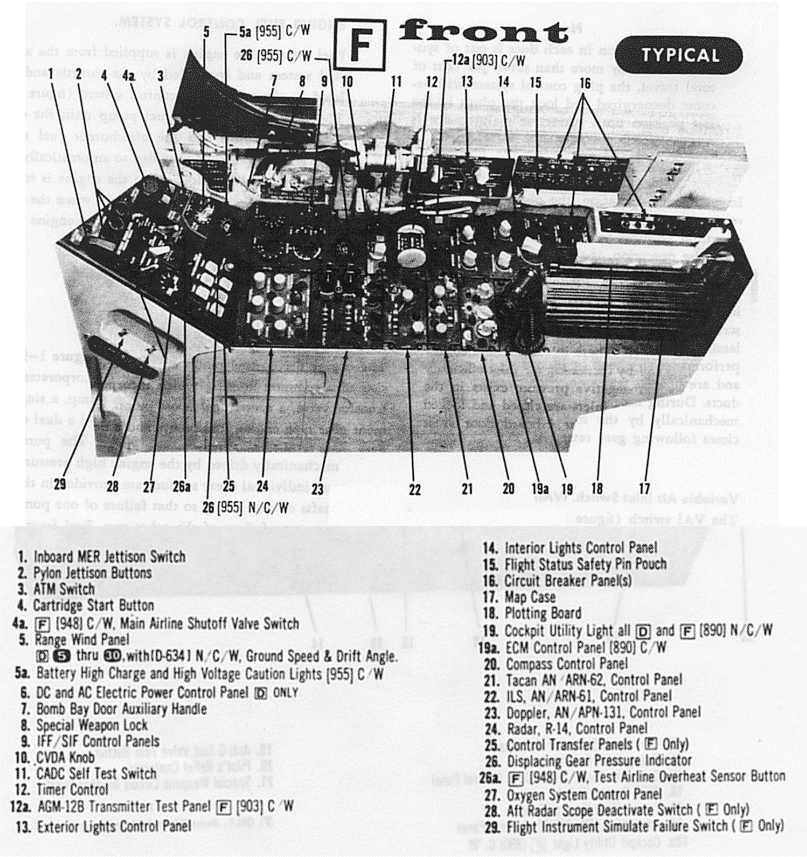

F-105F Front Cockpit Layout
F-105 F-105 F-105 F-105
F-105 F-105

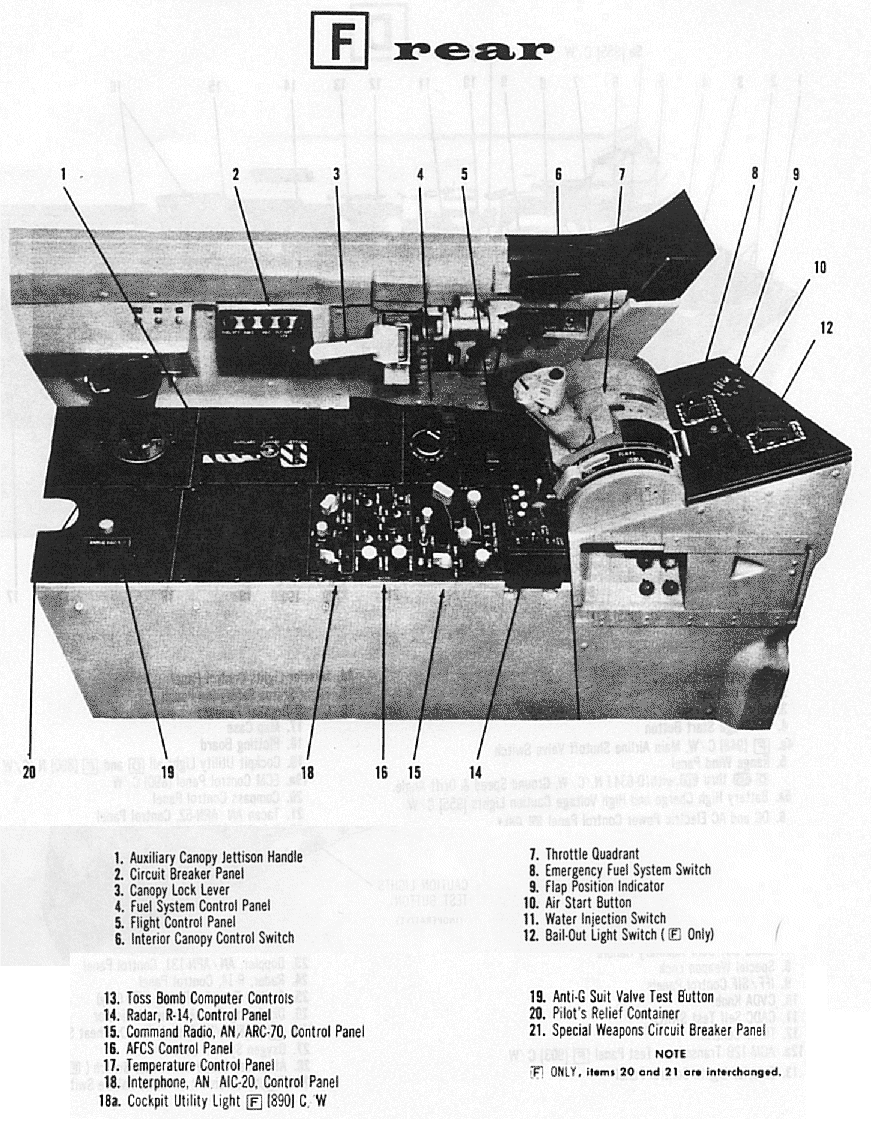

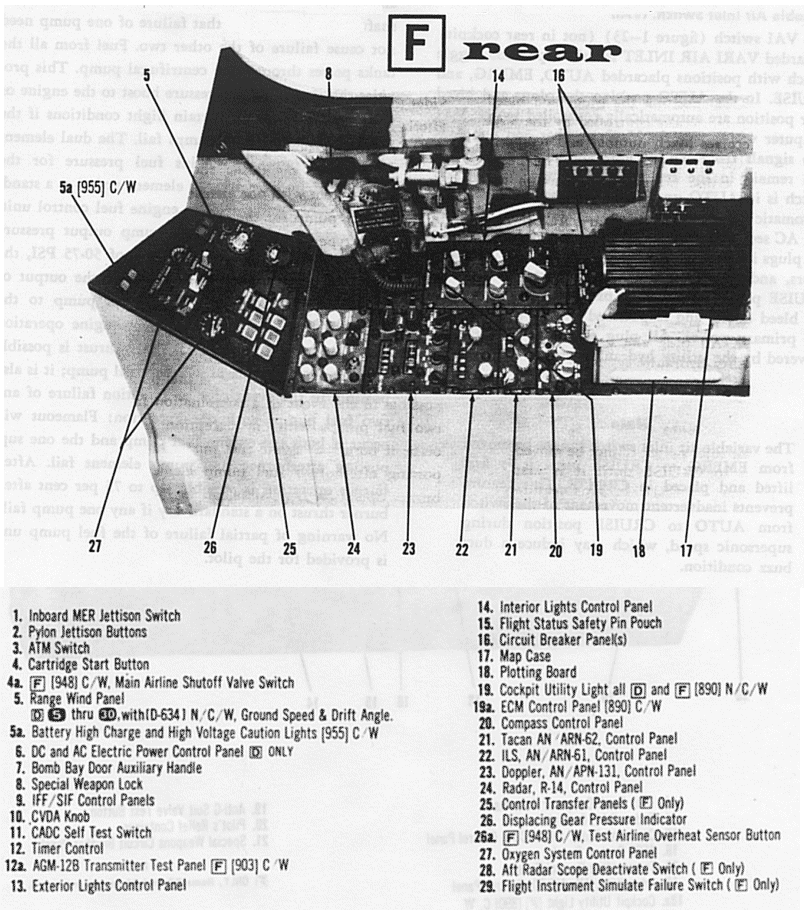

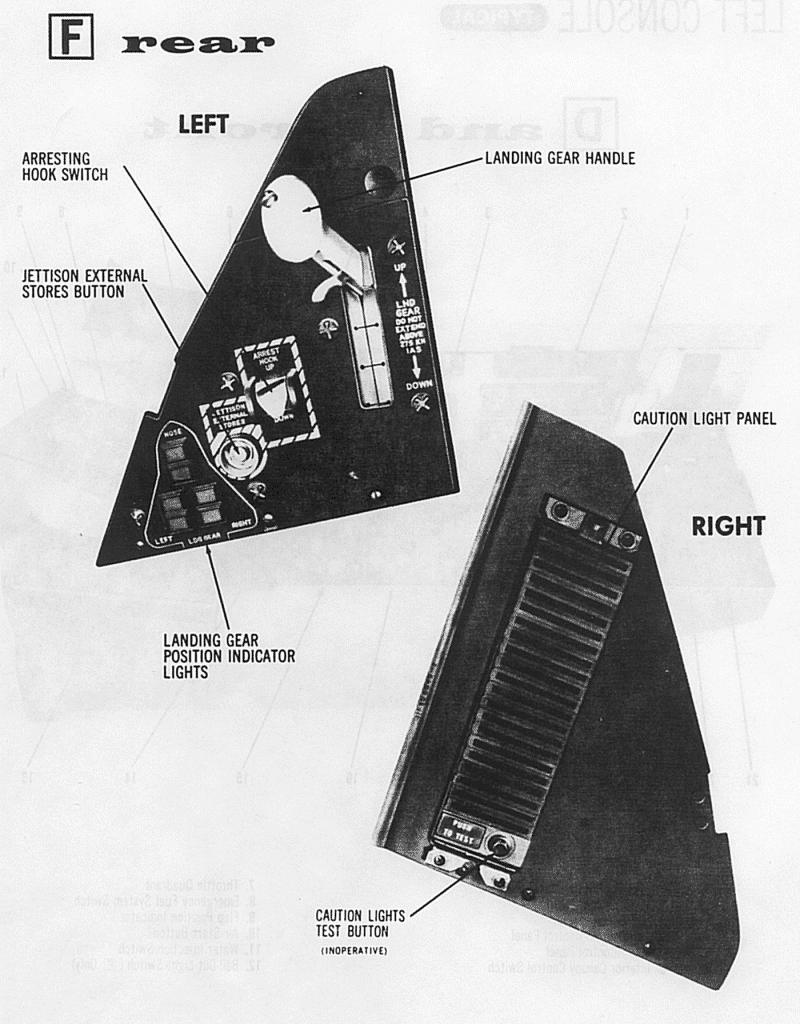

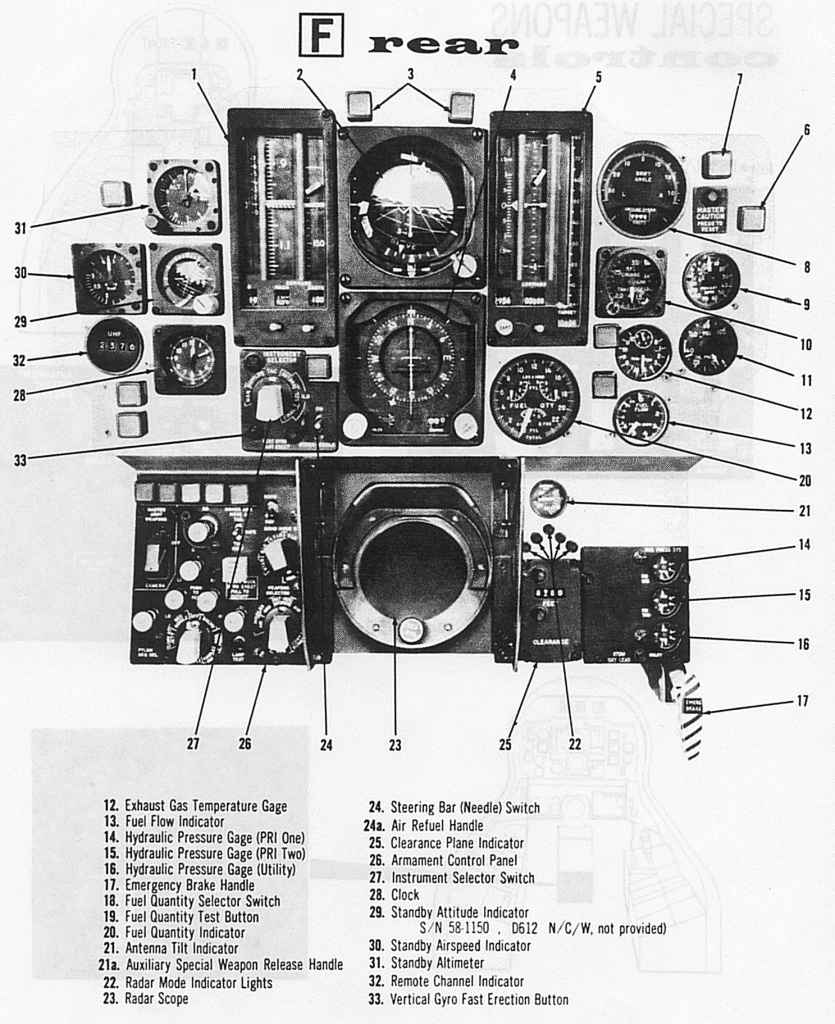

F-105F Rear Cockpit Layout
F-105 F-105 F-105 F-105
F-105 F-105

Source:

TO-1F-105D-1
