F-105D Thunderchief Loadouts

F-105D Thunderchief Loadout Reference

Typical Loads During Vietnam Air War

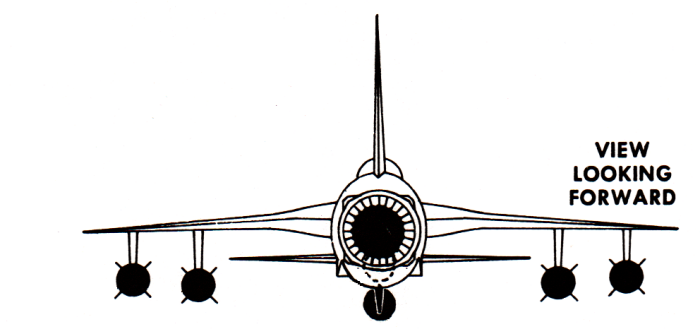

Mission Stn 1 Stn 2 Bomb Bay Stn 3 Stn 4 Stn 5
M117 Strike 1 ALQ-87 450 Gal 390 Gal MER
6 x M117
450 Gal 1 x AIM-9B
M117 Strike 2 1 x M117 450 Gal 390 Gal MER
6 x M117
450 Gal 1 x M117
M117 Strike 3 1 x M117 MER
4 x M117
390 Gal 650 Gal MER
4 x M117
1 x M117
Mk.83 Strike 1 1 x Mk.83 450 Gal 390 Gal MER
3 x Mk.83
450 Gal 1 x Mk.83
Mk.83 Strike 2 1 x Mk.83 TER
2 x Mk.83
390 Gal 650 Gal TER
2 x Mk.83
1 x Mk.83
Mk.84 Strike 1 Empty 1 x Mk.84 390 Gal 650 Gal 1 x Mk.84 Empty
Mk.84 Strike 2 Empty 1 x Mk.84 390 Gal 1 x Mk.84 1 x Mk.84 Empty
