DML 1/35 Sd.Kfz.7/1 2cm Flakvierling 38 auf Selbsfahrlafette - Smart Kit First Look

By Cookie Sewell

Images by Michael Benolkin

Date of Review April 2009 Manufacturer DML
Subject Sd.Kfz.7/1 2cm Flakvierling 38 auf Selbsfahrlafette - Smart Kit Scale 1/35
Kit Number 6525 Primary Media 536 parts (299 in grey styrene, 216 “Magic Track” two-piece links, 13 etched brass, 6 clear styrene; 2 film masks)
Pros First new model of this specific vehicle in 30 years; nicely done use of “slide molding” and DS plastic tires to avoid seams and extra assemblies; full engine and underside details Cons As a 'Smart Kit' probably not enough brass for some; small links perhaps better as DS tracks
Skill Level Experienced MSRP (USD) $59.95

First Look

Sd.Kfz.251/1
Sd.Kfz.251/1
Sd.Kfz.251/1
Sd.Kfz.251/1
Sd.Kfz.251/1
Sd.Kfz.251/1
Sd.Kfz.251/1
Sd.Kfz.251/1
Sd.Kfz.251/1

The Germans were certainly big fans of halftracked vehicles for increased mobility. They had unarmored vehicles in the 1, 3, 5, 8, 12 and 18 metric ton classes, armored personnel carriers in the 1 and 3 ton classes, and many more derivative vehicles and conversions. Among modelers they have always been popular, and of the six major classes probably the most popular is the Sd.Kfz. 7 8 ton halftrack. With more than 3,200 built, it was used as the prime mover for the 8.8 cm antiaircraft guns and 10.5 and 15 cm howitzers. Later two variants were created by modifying the 8 ton to a flatbed and adding either four 2 cm guns (Sd.Kfz. 7/1 - 319 converted) or a single 3.7 cm gun (Sd.Kfz. 7/2 - 123 converted) for self-propelled air defense.

This vehicle has been popular in just about every scale used by modelers so far except the giant scales (e.g. 1/25 and 1/16) and 1/35 is no exception. When Tamiya released their then world class leader 8.8 cm Flak 36 kit back in 1973, modelers could not wait until they released the 8 ton to pull it. Later they did release both an Sd.Kfz. 7/1 and much later an Sd.Kfz. 7/2. But in the meantime tastes change, and since the original kit was motorized it suffered from a lot of compromises which hurt its accuracy. Many aftermarket kits were released to upgrade or correct it, but it still left much to be desired.

In 2007 both DML and Trumpeter announced new 8 ton kits. Trumpeter was the first to get theirs to market with an eager public awaiting the kit, but unfortunately it appeared to be rushed and suffered a number of errors. DML apparently shelved theirs for the moment when the other kit was released.

In late 2008 Trumpeter announced a kit of the Sd.Kfz. 7/1 with the 2 cm Flakviering, but this time DML has released theirs first and beaten them to the punch. From the breakdown of molds this kit shows that we probably can expect a separate 2 cm Flakvierling 38 kit (or more likely Wirbelwind and Moebelwagen kits on their Pzkw. IV chassis) as well as the long awaited Sd.Kfz. 7 to tow their 10 cm and 15 cm artillery pieces and 8.8 cm AA guns.

DML has provided a very thorough kit with a complete engine and undercarriage to include the winch and all associated parts, as well as the flatbed body with etched brass mesh panels for the fold-out sides. Some things remain the same – for example, the two-piece “Magic Track” halftrack tracks are included, but as often noted are very small and DML could have made many modelers happy by molding them as one-piece runs in DS plastic. Also, as the kits are “Smart Kits” they make use of slide molding and other tricks to avoid needless small parts assemblies and minimize the use of brass.

Most of the bits missing on the Tamiya kit are present here, for as well as the complete engine there is a transfer case, fuel tank, four-part winch drum, and complete towhook installation that form part of the chassis. The drivers are two-piece with suitable rollers represented and also add etched brass centers for scale appearance.

The front tires are DS plastic outers and treads combined with a styrene inner section. While presumably the fit will be good since it is on the inside it should not be a problem, and the result is a nice diamond-pattern tread all the way around with no seams. Another complete tire unit is included as the spare for under the cargo bed.

The only thing some may complain about for the basic chassis is that the grille is solid, and perhaps could have been molded differently to give it some “airiness” with the radiator behind it. The hood comes with separate side panels which can be left of as per the originals.

The bed is nicely done and the rear fold-down panel (note these are either/or and not operating parts) has twin folding steps with two different sets offered (folded or extended). The crew seat may be shown either folded up or down as well. A rack is provided on the front left fender for two Kar 98K rifles as well.

The 2 cm Flakvierling 38 is all new as well and has new guns with slide molded barrels and flash hiders. As with previous DML antiaircraft gun offerings, there are different sight articulation bars provided for setting the guns at either 0 or 60 degrees elevation, but the guns will not move if the bars are used. Two different types of gun shields are provided, as are a number of magazines and ammo racks for the installation.

This is the first DML kit which also provides masks for the windshield sections so that the model may assembled and then painted, and which is a nice touch.

Research and technical assistance were provided by Dan Graves, Tom Cockle and Gary Edmundson.

Four different finishing options are offered with a small sheet of Cartograf decals, but it also provides a license plate “number jungle”. The variants which can be modeled are: 24th Panzer Division, Stalingrad 1942 (grew with unit markings in white); Unidentified unit, Eastern Front 1942 (grey with whitewash spots); Unidentified Luftwaffe Flak Abt. Russia 1943 (grey with whitewash stripes); Unidentified Luftwaffe Flak Abt. Russia 1942 (grey with whitewash stripes and small markings on cab panels).

Overall this looks to be another winner, and hopefully DML releases the “straight” 8 ton faster than it did with the M2 and M3 US halftracks.

Thanks to Freddie Leung of Dragon Models USA for the review sample.

Sprue Layout:

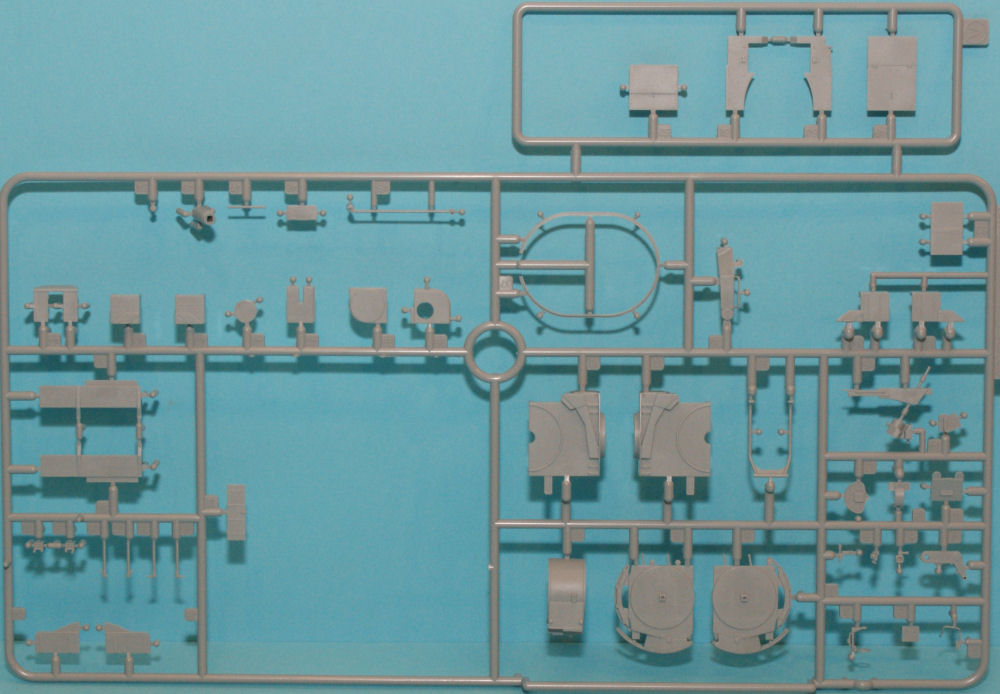

  • A 52 7/1 Flakvierling carriage and details

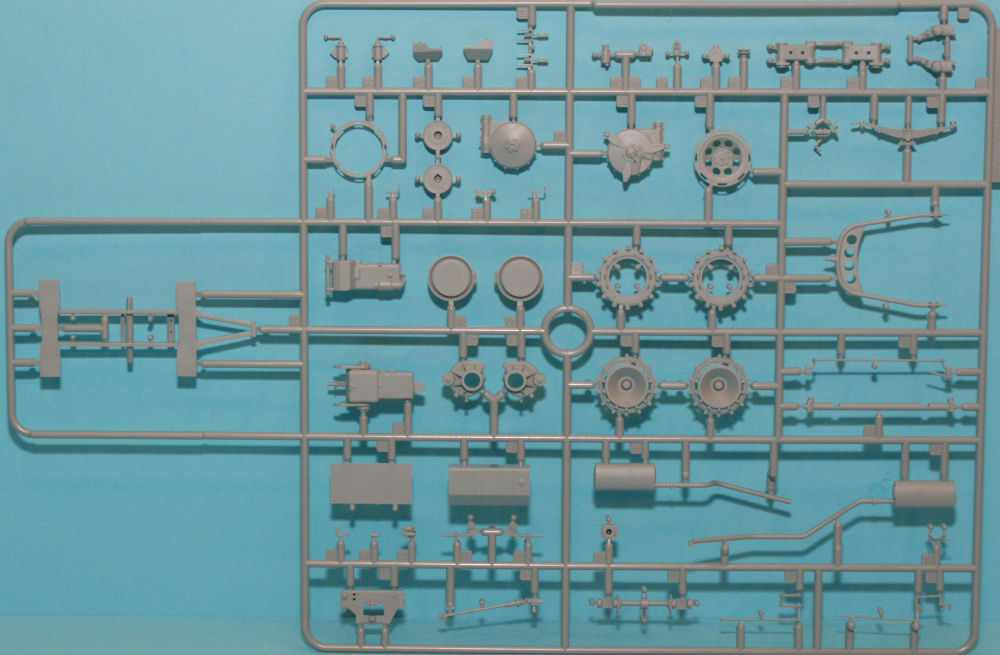

  • B 55 8 ton - Underframe details - winch, drivers, front axle, subframe, muffler

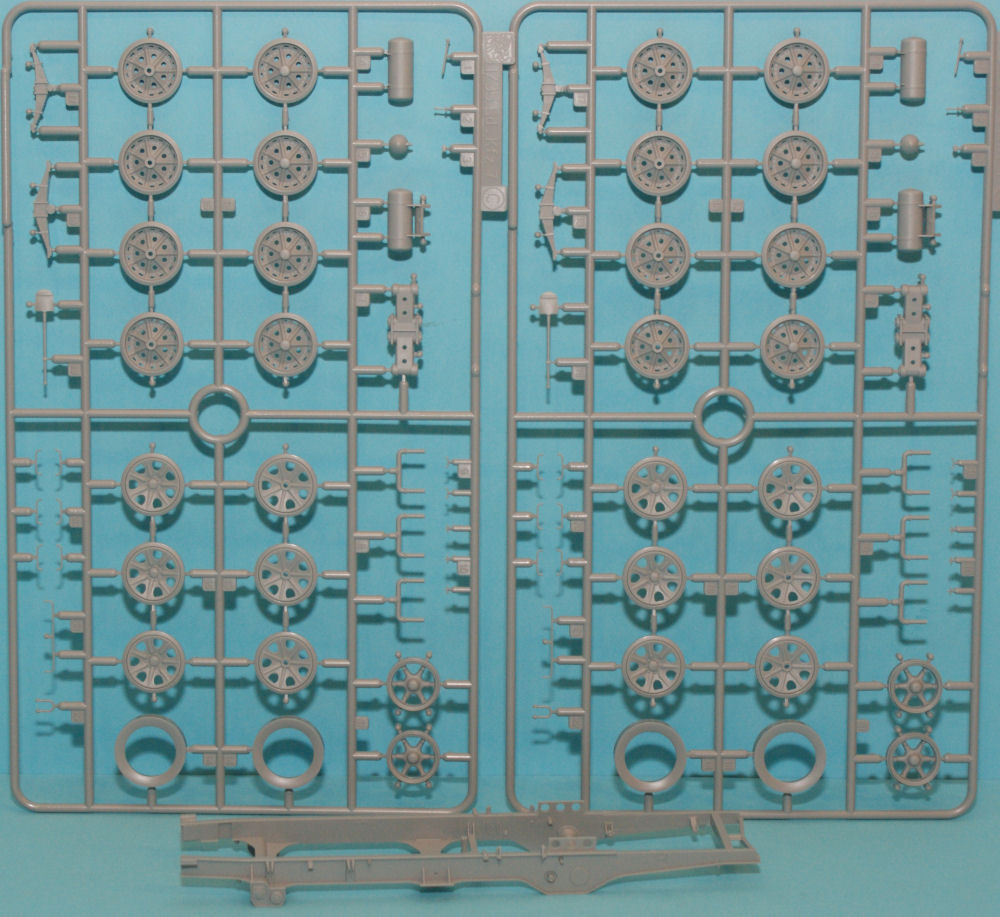

  • C 4x2 8 ton - road wheels, front wheel backs, body details

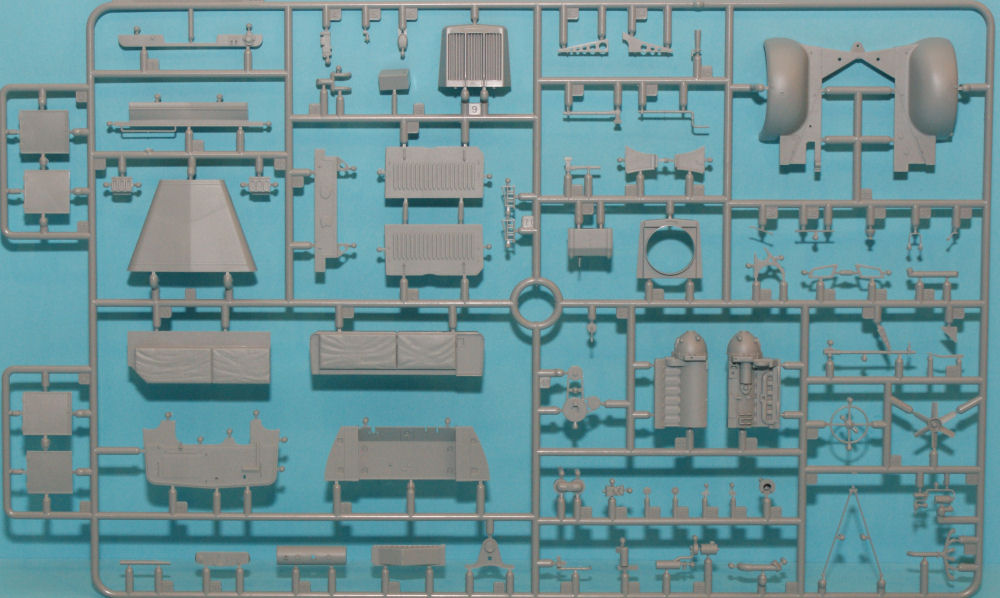

  • D 72 8 ton - engine, hood, radiator, standard passenger body components less sides

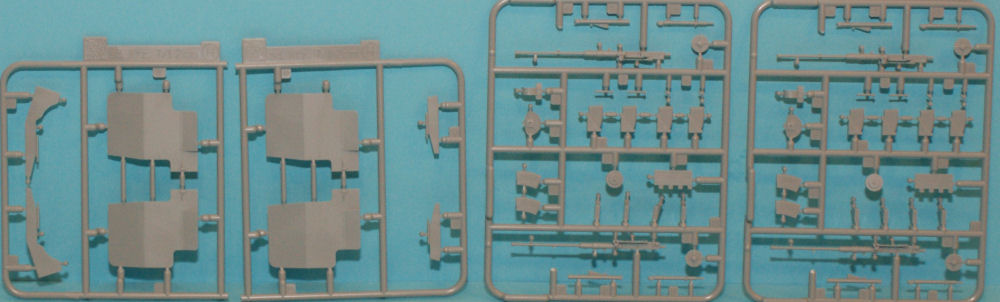

  • G 26x2 7/1 Flakvierling - 2 x 2 cm Flak 38 and ammo clips
  • H 6 8 ton - clear styrene
  • H 4x2 7/1 Flakvierling shields (two different)

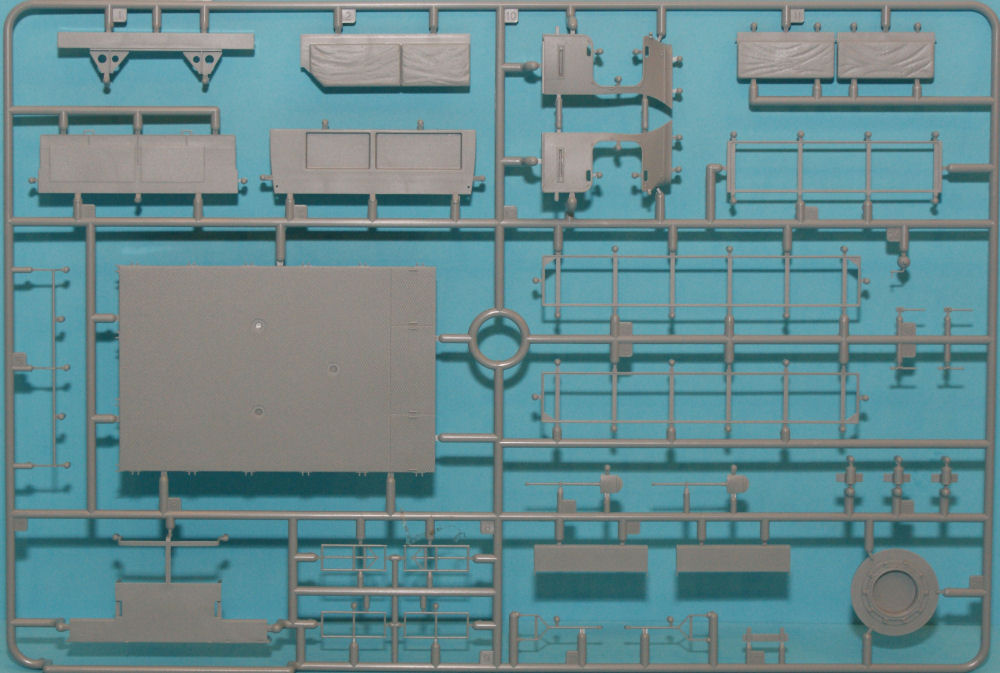

  • J 32 8 ton - platform body with folding sides, cab sides, front seat
  • K 3 DS plastic tires
  • W 1 8 ton - chassis

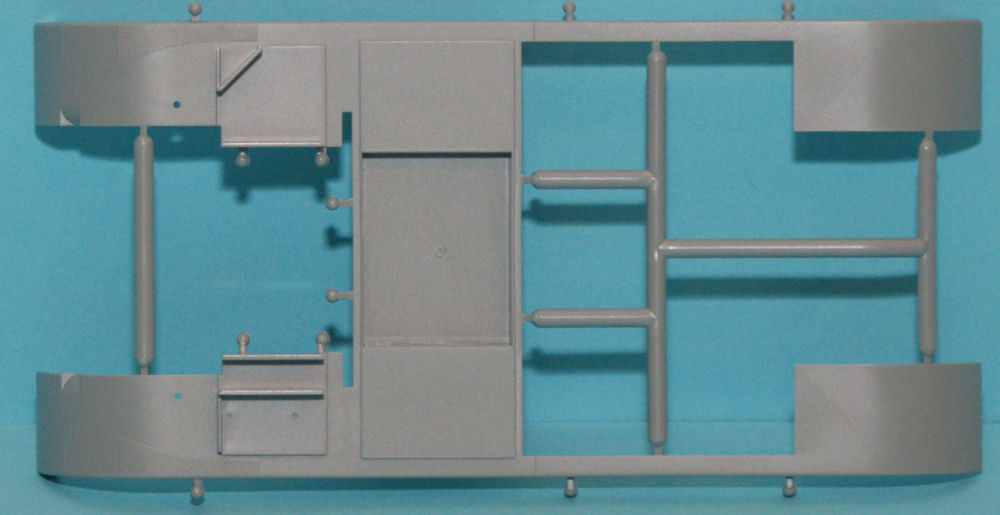

  • X 1 8 ton - rear fender assembly

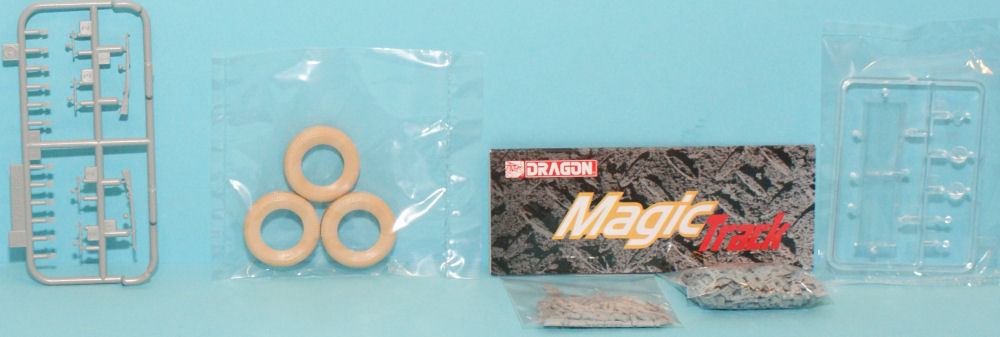

  • Y 108 “Magic Track” track pads
  • Z 108 “Magic Track” track links

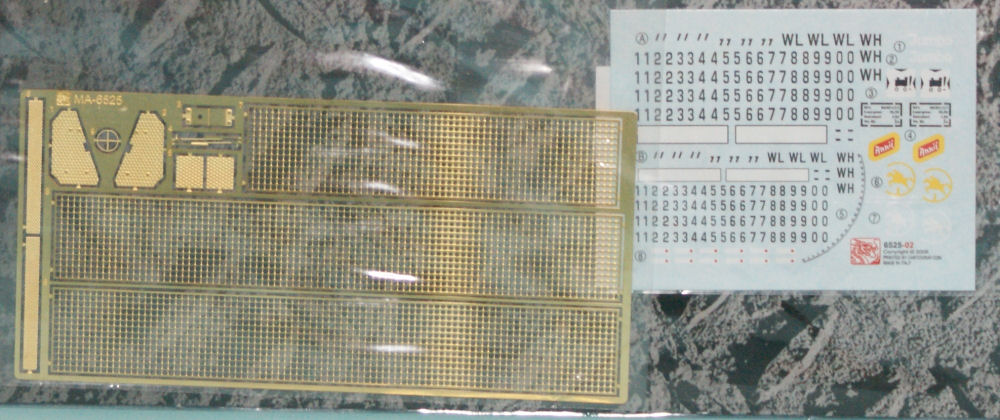

  • MA 13 Etched brass
  • WA 18 German generic weapons - 2 x Kar 98K
