F-4J Phantom II Marines Kit

Zoukei-Mura Inc. 1/48 F-4J Phantom II Marines Kit Build Review

By Fotios Rouch

Date of Review June 2018 Manufacturer Zoukei-Mura Inc.
Subject F-4J Phantom II Scale 1/48
Kit Number 48008 Primary Media Styrene
Pros Beautiful molding, excellent detail Cons See text
Skill Level Experienced MSRP (USD) $75.00

Build Review

For a look at this kit out of the box, look here.

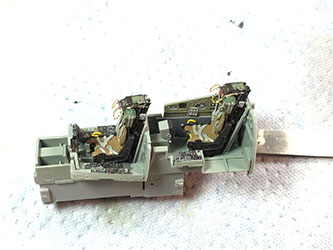

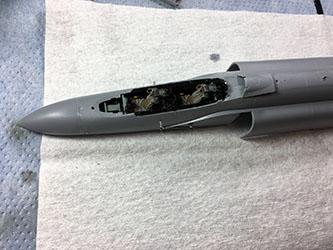

This Zoukei-Mura Inc. 1/48 F-4J Phantom II is well-engineered for sure. The cockpit fits very nicely within the fuselage halves. The top hump plug fits OK, but not great. The canopy mechanism housing will take some fiddling to get just right.

F-4J Phantom II MarinesF-4J Phantom II Marines

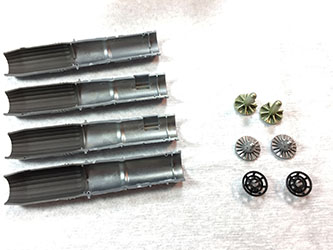

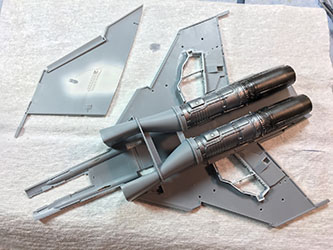

The wheel wells fit great and the wing top looks like it will go down without any problems. I do like the detailed instructions.

F-4J Phantom II MarinesF-4J Phantom II Marines

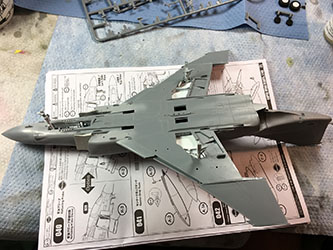

I would have liked a little more play in the lower center wing/fuselage and intake areas. The tolerances are tight and if something is not absolutely perfect, there is little room to play with. My build came out OK in these areas, but barely so.

F-4J Phantom II MarinesF-4J Phantom II Marines

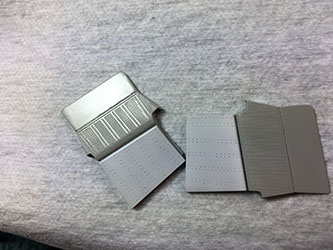

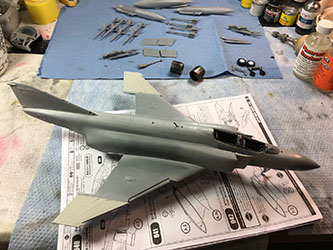

Careful when installing the rear fuselage exhaust plates that surround the base of exhaust cans. Make sure that they are flush with the fuselage surface even if the fit will leave a small gap on the area that will be hidden by the exhaust cans.

F-4J Phantom II MarinesF-4J Phantom II Marines

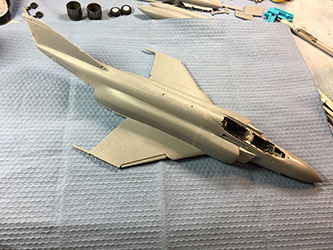

Everything else is going great and it is fun to be building such a well-designed kit.

F-4J Phantom II MarinesF-4J Phantom II Marines

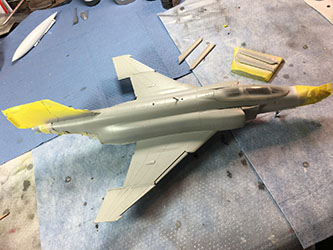

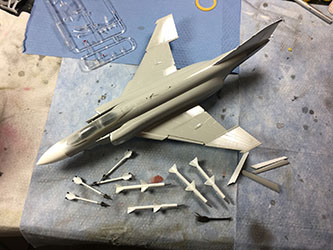

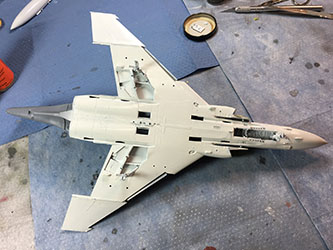

Using gloss enamel or lacquer paints always takes more time.  I used gloss white from Testors and gloss gray from Xtracolor. I did two coats for each color with 24 hours drying time between coats. First went the white and then the gray.

F-4J Phantom II MarinesF-4J Phantom II Marines

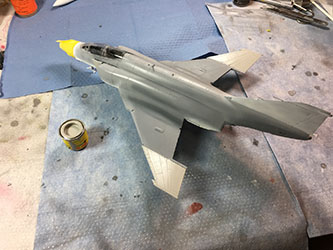

I used the clear one-piece canopy and glued it to the fuselage with white paper glue to protect the cockpit from over spray. I also masked the rear natural metal areas from getting over sprayed.

F-4J Phantom II MarinesF-4J Phantom II Marines

The next step was to paint the red background colors. I decided to paint the intake lips because I did not think the decals would ever work. Red is also a difficult color and I applied two coats, so I could have enough base for sanding it down with polishing cloths.

F-4J Phantom II Marines

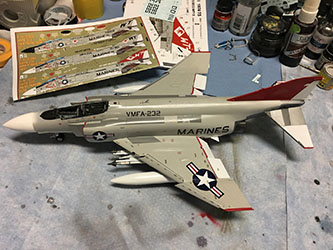

I also decided to use my leftover Furball decals for a Phantom that had all the antennas on the top fuselage. The kit instructions show how to install more antennas than F-4J usually had. The Furball choice I made had the top antennas in black.

F-4J Phantom II MarinesF-4J Phantom II Marines

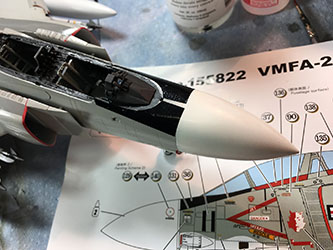

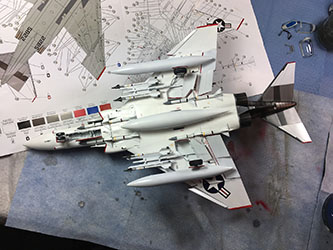

I started laying down the myriad of decals and the went down fine but the anti-glare decals would not work. They are supposed to follow the fuselage panel lines, but they would work. I decided to mask and paint them instead.

F-4J Phantom II MarinesF-4J Phantom II Marines

The rest of the decals and details went on fine.

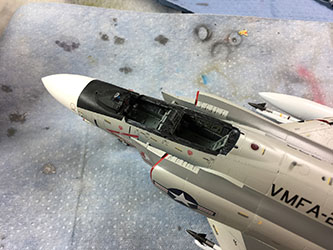

The canopies took a while to get them on and maybe this was one of the hardest parts of the kit for me. Take your time and be careful with the fit.

F-4J Phantom II Marines

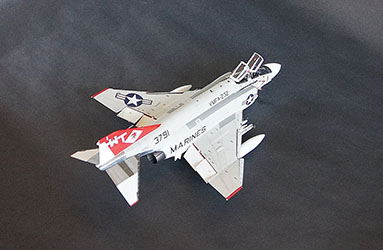

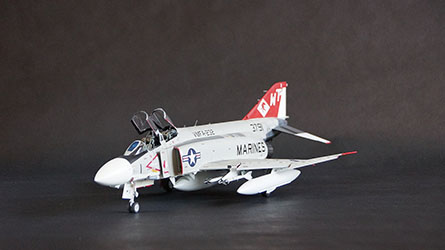

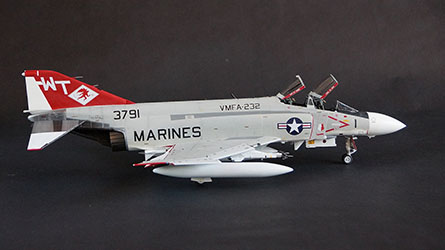

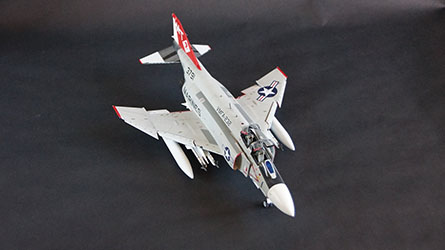

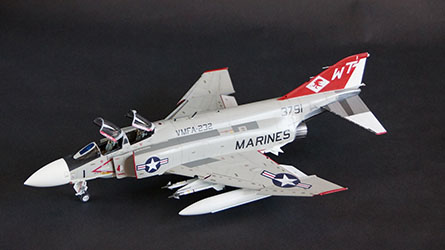

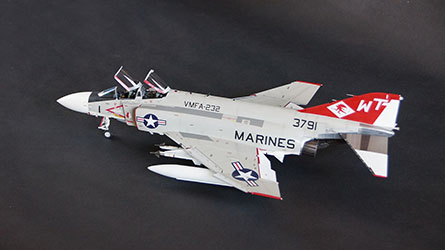

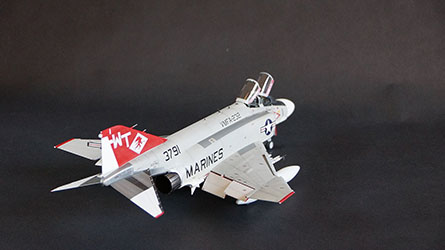

And here it is, completed!

F-4J Phantom II MarinesF-4J Phantom II Marines

F-4J Phantom II MarinesF-4J Phantom II Marines

F-4J Phantom II MarinesF-4J Phantom II Marines

F-4J Phantom II MarinesF-4J Phantom II Marines

My sincere thanks to  Zoukei-Mura Inc. for this review sample!
