Stryker Slat Armor

Eduard 1/35 Stryker Slat Armor Set First Look

By Michael Benolkin

Date of Review November 2007 Manufacturer Eduard
Subject Stryker Slat Armor Set Scale 1/35
Kit Number 36002 Media Photo-Etch
Pros Tailored slat armor set for the AFV Club Stryker kit Cons
Skill Level Intermediate MSRP (USD) $54.95

First Look

Stryker Slat Armor
Stryker Slat Armor
Stryker Slat Armor

When I first looked at the Trumpeter Stryker earlier this year (look here), I mentioned in that review that it would be difficult to render slat armor in styrene. Even with thin strips of Evergreen, it just wouldn't look quite right. The best way to go is photo-etch.

Well Eduard stepped up to this challenge with a well-designed Slat Armor Set for the Trumpeter 1/35 Stryker kit (look here). Since that time, AFV Club released their own rendition of the 1/35 Stryker and Eduard has now responded with this Slat Armor set tailored for that kit as well. Let's take a close look.

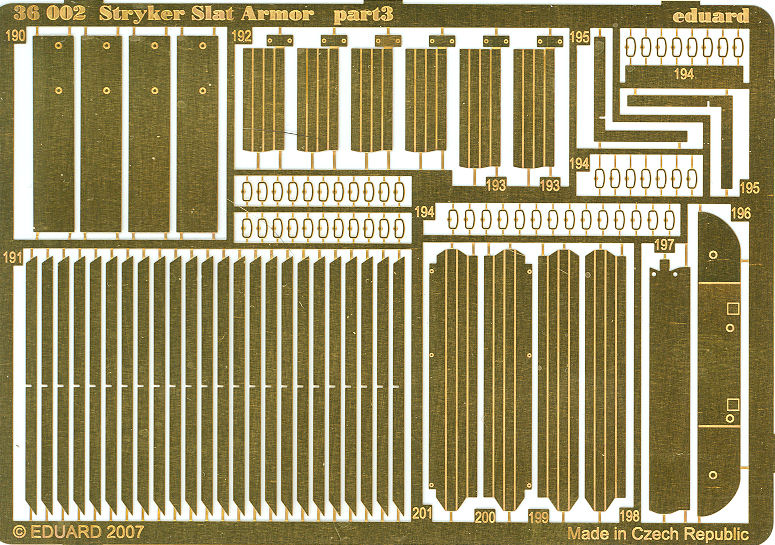

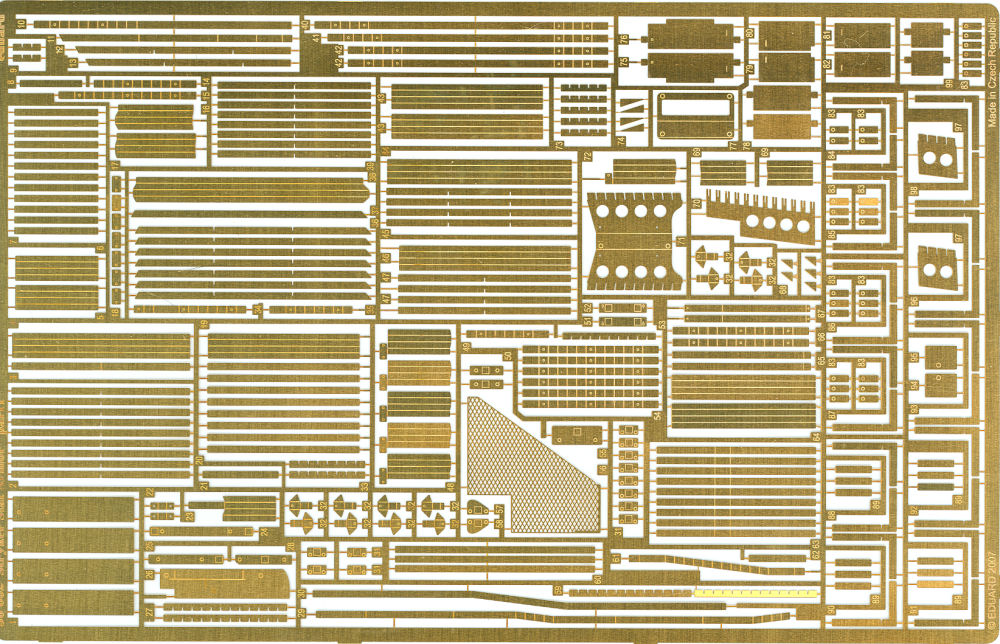

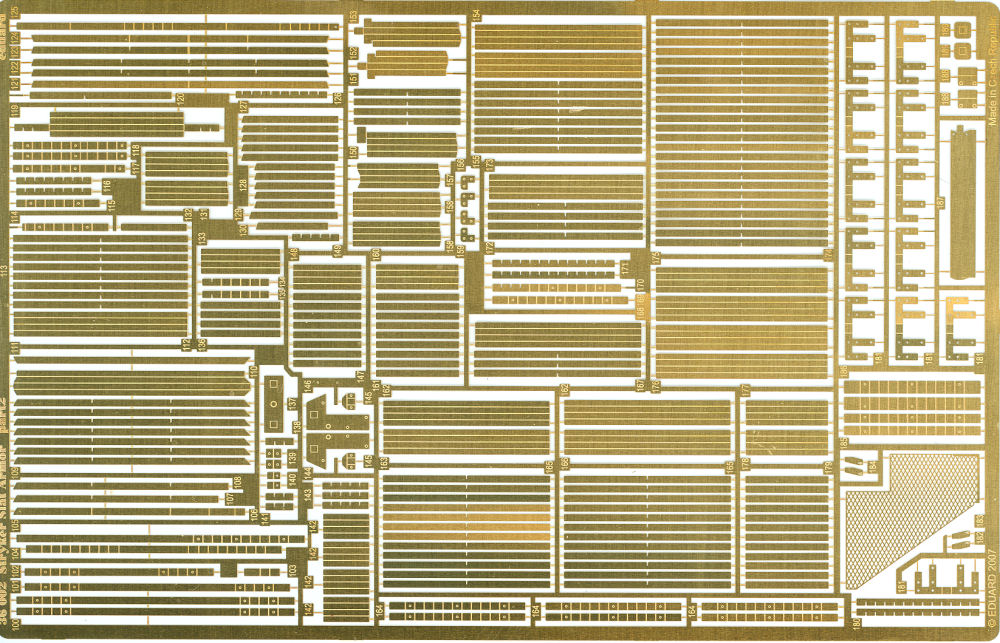

The detail set is provided on two large sheets of photo-etch and a third smaller fret. With all of this photo-etch, you might think there are some details for the hull too, but not so. Aside for mounting beams for the slat armor, this set is all about replicating that mesh armor.

If the instructions are any indicator of a set's complexity, this one has eleven pages to show you how to assemble and place each slat armor panel. In a nutshell, there are to types of four types of parts provided here, horizontal slat sections, vertical slat sections (and both are slotted to make assembly easier), mounting frames, and box beams.

Most of the work appears to be centered around the box beams as these must be folded out of the flat photo-etched sheets, and there are lots of them. This means you're going to need a serious photo-etch bending tool. If you have one of those 'plastic' photo-etch tools, give it away. Those may hold a square edge for a little while but mine started giving me rounded corners all-too-soon. I'm back to using a metal photo-etch tool as this does give you square corners. With these small box beams, rounded corners will really render a round pipe instead.

There is another possibility here. Since most of the bending will be the box beams, don't use them for anything more that templates. This is a good place to use Evergreen styrene as you can get strips of the right size and cyano the slat sections to the styrene strips. When you're done, you can cement the slat arrays to the hull. Another option might be K&S brass shapes cut to proper lengths. You get the idea, you might be able to substitute another material for having to fold the box beams. If you do opt to use the photo-etch for the box beams, this is also a good opportunity to use your resistance soldering tools to assemble the slats rather than cyano. If you're not familiar with resistance soldering, visit one of the better model railroad shops in your area and talk to them.

The instructions clearly show you how and where everything goes together. Plan on taking your time and plan on taking some time to get all of this together as this is not a project for an evening or a weekend (unless you're really experienced and have the right tools).

When you're done however, your AFV Club Stryker will look like none others at the model contest. If you remember how striking the Verlinden photo-etch Zelda armor really set off the Tamiya M113 APC, this set will really make the AFV Club kit stand out.

This set is definitely recommended for the experienced modeler!

My sincere thanks to Eduard for this review sample!
